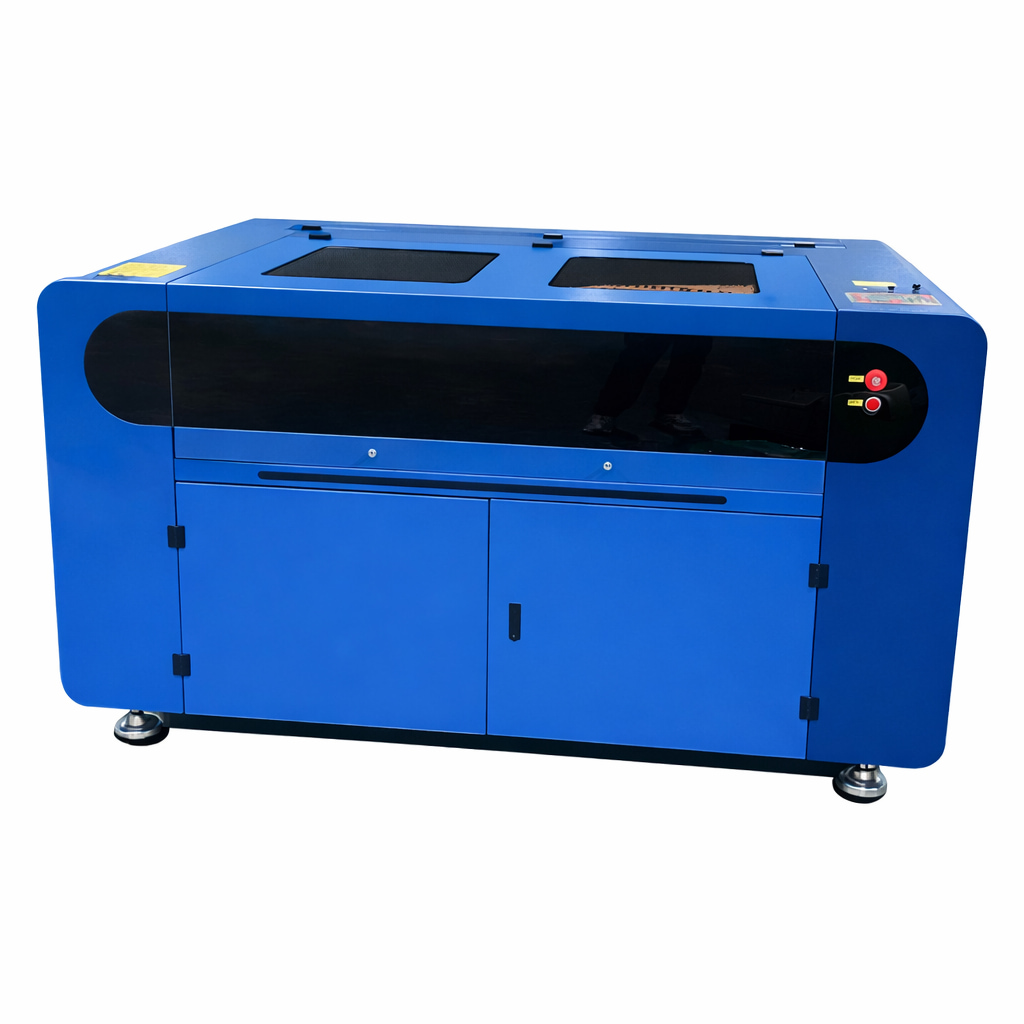

CO2 Laser Engraving Machine for Wood Acrylic Leather and Crafts
The 100W CO2 Laser Engraving Machine is a high precision engraving and cutting solution designed for workshops, advertising companies, and craft manufacturers. It is widely used for processing wood, acrylic, leather, rubber, memorial engravings, and non metallic materials with stable performance and excellent engraving detail.
Modelo de producto :
1390-100WProceso de dar un título :
CE, ISOPresupuesto :
1600*1200*1000mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year

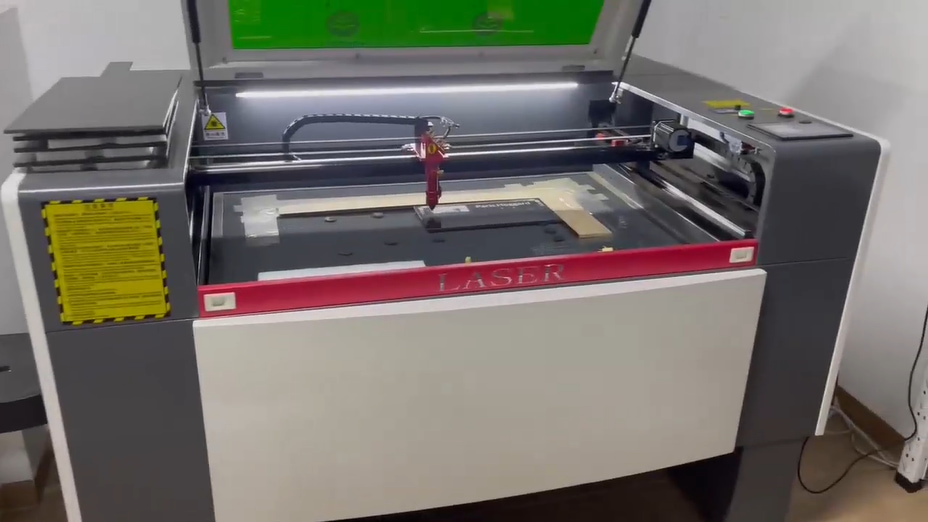

This industrial CO2 laser engraving machine is designed to provide reliable performance for workshops and factories that require flexible material processing. The machine adopts a CO2 sealed glass tube laser source, delivering stable laser energy for engraving and cutting operations. With a maximum working area of 1300mm × 900mm, users can process large advertising boards, decorative panels, and multiple small craft pieces in one batch.
The system achieves positioning accuracy below 0.01mm and engraving resolution up to 4500dpi, allowing extremely detailed patterns, logos, portraits, and text engraving. It supports design files from CorelDRAW, AutoCAD, and Photoshop, enabling designers to directly convert digital artwork into finished engraved products.
Core Features
1). High Precision Engraving Performance: The machine provides positioning accuracy below 0.01mm and engraving resolution up to 4500dpi, allowing detailed engraving of fine patterns, portraits, and small text used in crafts, advertising plates, and memorial plaques.
2). Large Format Working Area: With a 1300mm × 900mm working area, the machine can engrave large decorative panels, advertising boards, and multiple small craft products in one operation, increasing productivity.
3). Stable CO2 Laser System: The CO2 sealed glass tube laser provides consistent laser output suitable for engraving wood, acrylic, leather, bamboo, rubber, coated stone surfaces, and other non metal materials.
4). High Speed Engraving Capability: The machine supports engraving speeds from 0 to 6000mm per minute, enabling efficient production for both small batch customization and large order manufacturing.
5). Intelligent DSP Control System: The DSP controller allows users to operate the machine independently through USB drive, USB interface, or network connection, reducing reliance on constant computer connection.
6). Advanced Layer Processing: The system supports up to 256 processing layers, allowing different engraving depths, cutting paths, and gradient effects within a single design file.
7). Safe Cooling and Protection System: The water cooling system with water break protection prevents overheating and protects the laser tube during long working periods, improving equipment lifespan.
Technical Parameters
| Model | 1390-100W |
| Laser Power | 100W |
| Laser Type | CO2 Sealed Glass Tube Laser |
| Voltage | AC220±10% 50HZ/AC110±10% 60Hz |
| Working Area | 1300mm*900mm/customizable available |
| Working Speed | 0--60000mm/min |
| Positioning Accuracy | ＜0.01mm |
| Screen Ruling | 60lines |
| Minimum Forming Characters | Chinese Characters: 2*2mm; Strings: 1*1mm |
| Operating Temperature | 5℃-35℃ |
| Resolution | ≤4500dpi |
| Control Configuration | DSP |
| Data Transmission Interface | USB Drive/USB Date Interface/Network Router Interface |
| System Environment | Windows2000/Windows XP/Vista/Win7 |
| Cooling Method | Water Cooling and Water Protection System |
| Supported Graphic Formats | All formats recognizable by CorelDRAW, AutoCAD |
| Supported Software | CORELDRAW、PHOTOSHOP、AUTOCAD |
| Engraving Thickness | 0-10mm(Adjustable according to customer） |
| Multi-color Cutting | Up to 256 layers |
| Water Break Protection | Yes |
| Gradient Engraving | Yes, gradient size is adjustable |
| Machine Weight | 380kg |
Applications
1). Memorial and Tombstone Engraving: The machine is commonly used in cemetery and memorial product workshops to engrave portraits, text inscriptions, and decorative patterns on coated granite or stone plaques.
2). Advertising Sign Production: Advertising companies use the laser engraving machine to produce acrylic signs, shop logos, illuminated signboards, and decorative display panels.
3). Personalized Craft Manufacturing: Manufacturers create engraved wooden gifts, bamboo decorations, leather accessories, and custom souvenirs using precise laser engraving technology.
4). Packaging and Branding Industry: Laser engraving is widely used for engraving logos, patterns, and product branding on wood packaging, leather covers, and decorative materials.
5). Educational and Creative Studios: Design studios and maker spaces use the machine for creative prototyping, artistic engraving projects, and design experiments.
Comparison Analysis
1). CO2 Laser Engraving Machine vs Mechanical Engraving Machine
Mechanical engraving machines rely on physical cutting tools, which can wear out over time and require frequent replacement.
A CO2 laser engraving machine uses a non contact laser beam, allowing more precise engraving and smoother details without tool wear.
2). Laser Engraving vs Sandblasting for Tombstones
Traditional sandblasting engraving is suitable for large deep carvings but requires stencil preparation.
Laser engraving allows faster design changes and precise portrait engraving, making it ideal for customized memorial designs.
3). DSP Control vs Basic Laser Controller
Machines equipped with a DSP control system provide more stable data processing and allow users to run engraving tasks directly from a USB drive.
Expert Q&A
Q1. Can this laser engraving machine engrave stone
Yes. It can engrave coated stone, granite memorial plaques, and painted stone surfaces, which are commonly used for tombstone portraits and inscriptions.
Q2. What materials can this machine process
The machine supports materials such as wood, acrylic, bamboo, leather, rubber, plastic sheets, paper, and coated stone materials.
Q3. How small can the engraved text be
The machine can engrave characters as small as 1×1mm letters and 2×2mm Chinese characters, making it suitable for fine text engraving.
Q4. Does the machine require a cooling system
Yes. The machine uses a water cooling system with protection function to maintain stable laser temperature and extend laser tube lifespan.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
