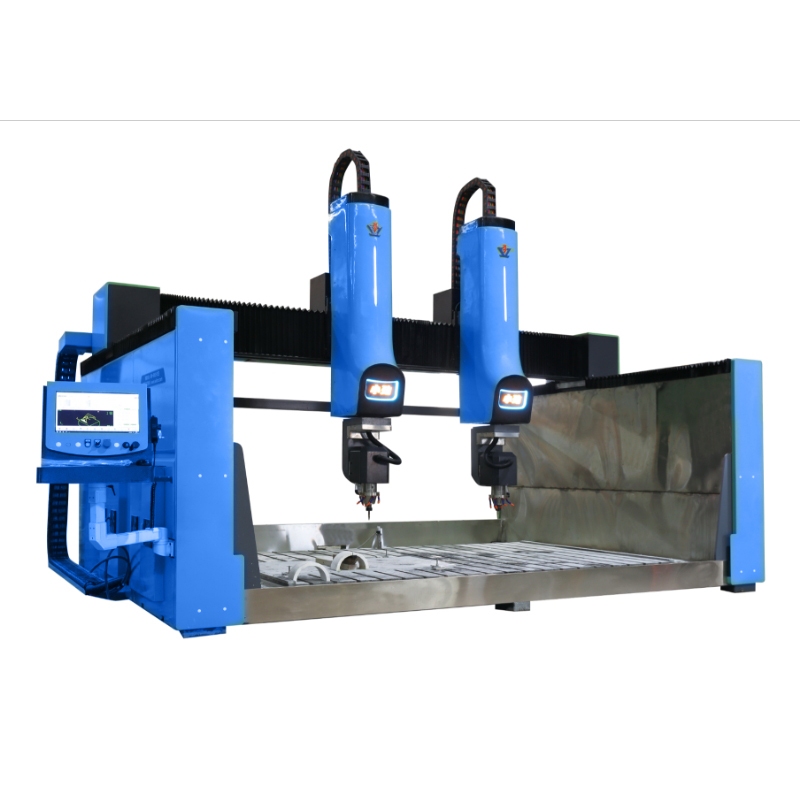

Meet our state-of-the-art 5-Axis Dual-Head Stone Engraving Machine, a game-changer in precision stone craftsmanship. Engineered to master complex 3D carving, this advanced equipment features two high-performance engraving heads that operate simultaneously, doubling productivity without compromising on detail.
Modelo de producto :
XJ3020X-2DProceso de dar un título :
CE, ISOPresupuesto :
3400*4100*2500mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year
Designed specifically for stone materials—from granite and marble to sandstone and limestone—its 5-axis system enables multi-angle, full-dimensional sculpting, bringing intricate designs to life with unparalleled accuracy.
Whether you’re crafting large-scale statues, detailed reliefs, or custom 3D stone art, this machine merges cutting-edge motion control with dual-head efficiency, making it an indispensable tool for professionals seeking to elevate speed, precision, and versatility in stone engraving.
1).5-Axis Motion System: Delivers unrestricted 3D carving capabilities with multi-directional movement (X, Y, Z, B, C axes), enabling complex angles, curves, and undercuts for lifelike, three-dimensional stone artistry.
2).Dual-Head Simultaneous Operation: Equipped with two synchronized engraving heads that work in tandem, reducing production time by up to 50% while maintaining consistent precision across both workpieces or sections.
3).Stone-Optimized Performance: Fine-tuned with adjustable speed, torque, and carving depth settings to handle hard and soft stone varieties, minimizing chipping and ensuring smooth, polished finishes.
4).Advanced Control Interface: Integrates with industry-leading CAD/CAM software for seamless design import, real-time simulation, and precise parameter adjustment, streamlining workflow from concept to execution.
5).Robust Construction: Built with a heavy-duty frame, anti-vibration components, and wear-resistant guides to withstand the rigors of continuous stone processing, ensuring long-term reliability and stable operation.
Technical Parameters
| Product Number | XJ3020X-2D |
| Platform Dimensions | 3000*2000mm |
| Workpiece Size | 1400*1900*2 |
| Feed Height | ≤600mm |
| Air Speed | 20m/min |
| Processing Speed | 15m/min |
| Spindle Power | 5.5KW- 7.5KW Motorized Spindle |
| Spindle Speed | 6000~24000 rpm/min |
| Motor | NC Studio |
| Reducer Speed | Ratio 7 |
| Operating Voltage | AC220V/ 50HZ or AC380V/ 50HZ |
| Engraving Tool | φ6/8/10/12/14/16mm |
| File Format | G Code/ENG |
| Positioning Accuracy | ±0.02mm |
| Repeatability | ±0.01mm |
| Control System | NC Studio |
| Machine Dimension | 3400*4100*2500mm |
| Weight | 4500kg |
Applications
1).3D Stone Sculpting: Creating lifelike statues, busts, and abstract artworks with intricate details and dynamic contours for galleries, parks, or public spaces.
2).Architectural Reliefs: Carving multi-layered 3D patterns, floral motifs, or historical scenes on stone panels for building exteriors, interiors, or monuments.
3).Custom Stone Decor: Producing personalized 3D designs on fireplace surrounds, garden statues, or decorative stone tiles for residential and commercial projects.
4).Heritage Restoration: Replicating intricate 3D elements of ancient stone artifacts, columns, or friezes with precise accuracy for preservation efforts.
5).Bulk Production of Stone Components: Efficiently manufacturing 3D stone parts for construction or interior design, leveraging dual-head speed for large orders.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC equipment, such as stone carving machine, four axis and five axis engraving machine, CNC machining center and three-dimensional engraving machine. With the help of perfect product production supply chain and strong technical service team, the company focuses more on the research and development of digital intelligent engraving technology, boosting the upgrading of engraving machine performance and function.
Now it has become a domestic CNC engraving machine production and export volume of enterprises, and one-time through ISO9001,CE certification, ROHS certification and BV certification, the products are sold all over the country, and exported to Europe, America, Southeast Asia, the Middle East and more than 60 countries and regions.
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
