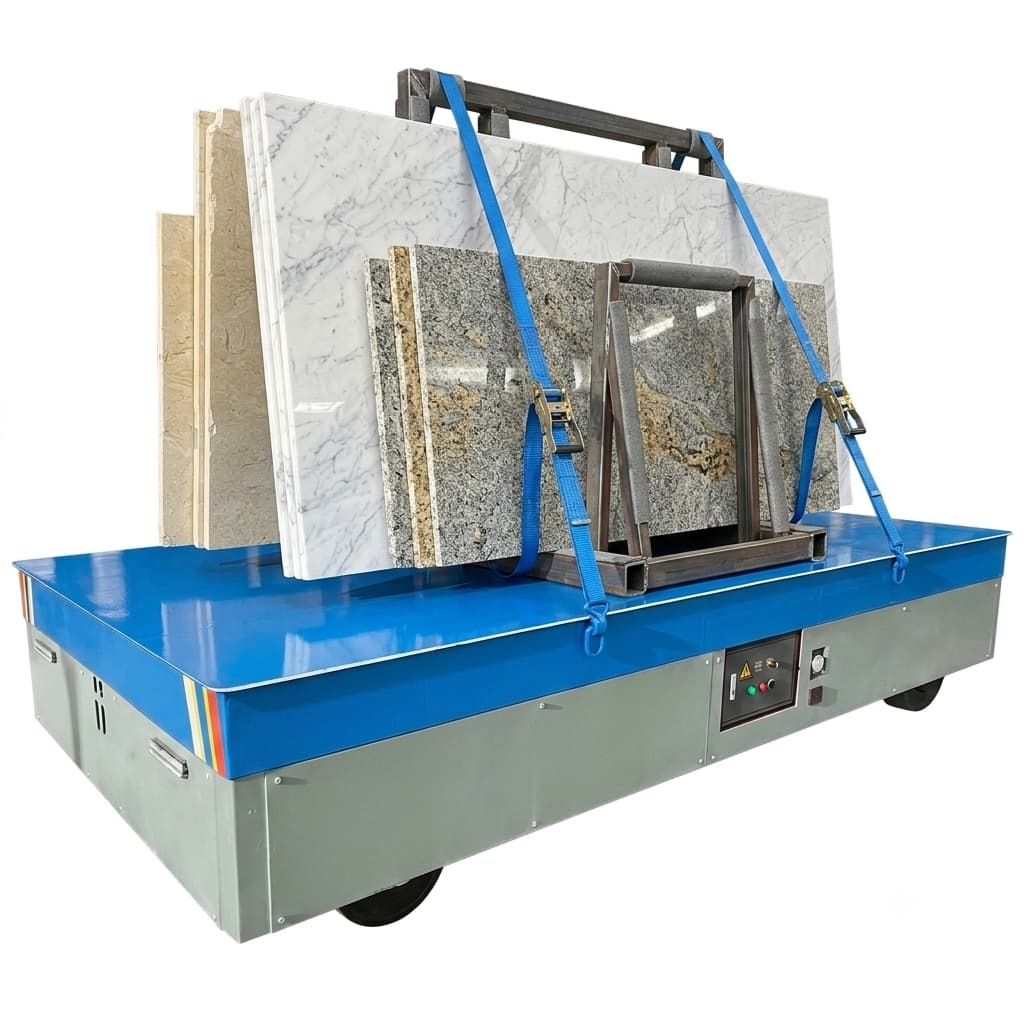

Smart Battery Powered 20 Ton Industrial Transfer Vehicle
The BDC20T Battery Powered Trackless Transfer Cart is a heavy-duty material handling vehicle designed for efficient transportation of large and heavy loads in factories, workshops, and industrial facilities. Powered by a maintenance-free battery system, this 20 Ton Electric Transfer Cart provides flexible movement without fixed rails, supporting forward, backward, turning, and precise positioning operations.
Modelo de producto :
BDC20TProceso de dar un título :
CE, ISOPresupuesto :
4500*2200*600mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year
The BDC20T Battery Powered Trackless Transfer Cart is an advanced 20 Ton Electric Material Transfer Cart integrating battery power supply, drive system, steel welded load-bearing frame, hydraulic steering system, traveling mechanism, intelligent control module, and fault diagnosis functions. Unlike traditional rail transfer carts that require fixed tracks and complex installation, this trackless electric transfer vehicle can move freely on cement floors and adapt to different factory layouts.
Equipped with a 48V D-440 maintenance-free battery, a 7kW motor system, and electromagnetic braking technology, the cart delivers stable transportation performance with a maximum load capacity of 20 tons and a maximum impact load of 30 tons. The 4500×2200mm working platform provides sufficient loading space for large molds, steel structures, stone products, machinery components, and other industrial materials.
Core Features
1. Heavy Load Handling: Supports 20T Industrial Transportation
The BDC20T adopts a reinforced steel plate welded frame structure, providing stable transportation for heavy materials such as stone blocks, molds, steel structures, and machinery parts with a maximum load capacity of 20 tons.
2. Trackless Operation: Flexible Movement Without Fixed Rails
The battery powered transfer cart runs directly on cement floors without rail installation, allowing flexible route changes and reducing factory layout limitations.
3. Hydraulic Steering: Enables Multi-Directional Movement in Limited Spaces
Equipped with a 45-degree hydraulic steering system and 60-degree in-place rotation function, the cart can easily operate in narrow workshops and complex production areas.
4. Intelligent Safety Control: Automatic Obstacle Detection and Emergency Stop
The built-in radar ranging system detects obstacles in real time and activates sound-light alarms with automatic stopping functions to improve operation safety.
5. Wireless Remote Control: Simplifies Heavy Material Handling
Supporting wireless and wired control modes, the operator can easily control forward, backward, stopping, and steering operations from a safe distance.
6. Smart Battery System: Provides Stable Power Supply
Powered by a 48V maintenance-free battery with an automatic intelligent charger, the cart ensures convenient charging and reliable daily operation.
7. Automation Expansion: Supports Intelligent Factory Applications
The transfer cart can be equipped with PLC control, positioning devices, clamping systems, and lifting platforms to meet customized automation requirements.
Technical Parameters
| Load Capacity(t) | 20T | ||||||
| Max. Impact Load(t) | 30 | ||||||
| Structure of Frame | Steel Plate Welded Beam Structure | ||||||
| Thickness of Steel Plate | 14 | ||||||
| Car Weight(t) | 7.9 | ||||||
| Max. Wheel Load(t) | 5.6 | ||||||
| Ground Requirement | Cement Floor | ||||||
| Table Size(mm) | 4500x2200 | ||||||
| Height of Car(mm) | 600 | ||||||
| Ground Clearance(mm) | 50 | ||||||
| Track Width(mm) | 1700 | ||||||
| Wheel Base(mm) | 3900 | ||||||
| Turning Method | 45-degree hydraulic steering | ||||||
| Control Method for Turning | Push-button Control | ||||||
| Turning Structure | Hydraulic type | ||||||
| Total Power of Motor(Kw) | 7 | ||||||
| Wheel Diameter(mm) | φ400 | ||||||
| Wheel Material | Cast Steel | ||||||
| Running Speed(m/min) | 0-20 | ||||||
| Braking Method | Electromagnetic Brake | ||||||
| Operation Method | Wireless Remote Control + Wired Remote Control | ||||||
| Battery Model | D-440 48V | ||||||
| Battery Maintenance | Free of Maintenance | ||||||
| Charger | Installed on Car | ||||||
| Charger Function | Automatic Charging | ||||||
| Car Color | Yellow/Grey/Warning Signs | ||||||
| Rader Ranging Control | Automatic Stop for Obstacles | ||||||
| Warning Equipment | Sound and light Alarm | ||||||
| Other Functions | Turing Light, Night Light and Battery Level Display |
Applications
Battery Powered Trackless Transfer Cart Comparison
| Comparison Item | BDC20T Trackless Electric Transfer Cart | Traditional Rail Transfer Cart |
|---|---|---|
| Installation Requirement | No fixed rails required | Requires rail installation |
| Movement Flexibility | Free movement on cement floors | Limited to fixed tracks |
| Steering Method | Hydraulic multi-direction steering | Usually fixed direction |
| Factory Layout Adaptability | High flexibility | Requires route planning |
| Maintenance | Battery and electrical system maintenance | Rail maintenance required |
| Application Expansion | Supports PLC, positioning, lifting devices | Limited customization |
Expert Q&A
Q1: What is the maximum load capacity of the BDC20T electric transfer cart?
A: The BDC20T is designed for a 20-ton rated load capacity and can withstand a maximum impact load of 30 tons, making it suitable for heavy industrial transportation applications.
Q2: Does the trackless transfer cart need rails?
A: No. The BDC20T is a rail-free electric transfer cart that operates directly on flat cement floors, allowing factories to change transportation routes without installing additional tracks.
Q3: How does the cart avoid collisions during operation?
A: The cart is equipped with a radar ranging system. When obstacles or pedestrians are detected, it activates sound and light alarms and automatically stops to improve operational safety.
