Industrial Stone Slab A Frame Rack With Strong Structure

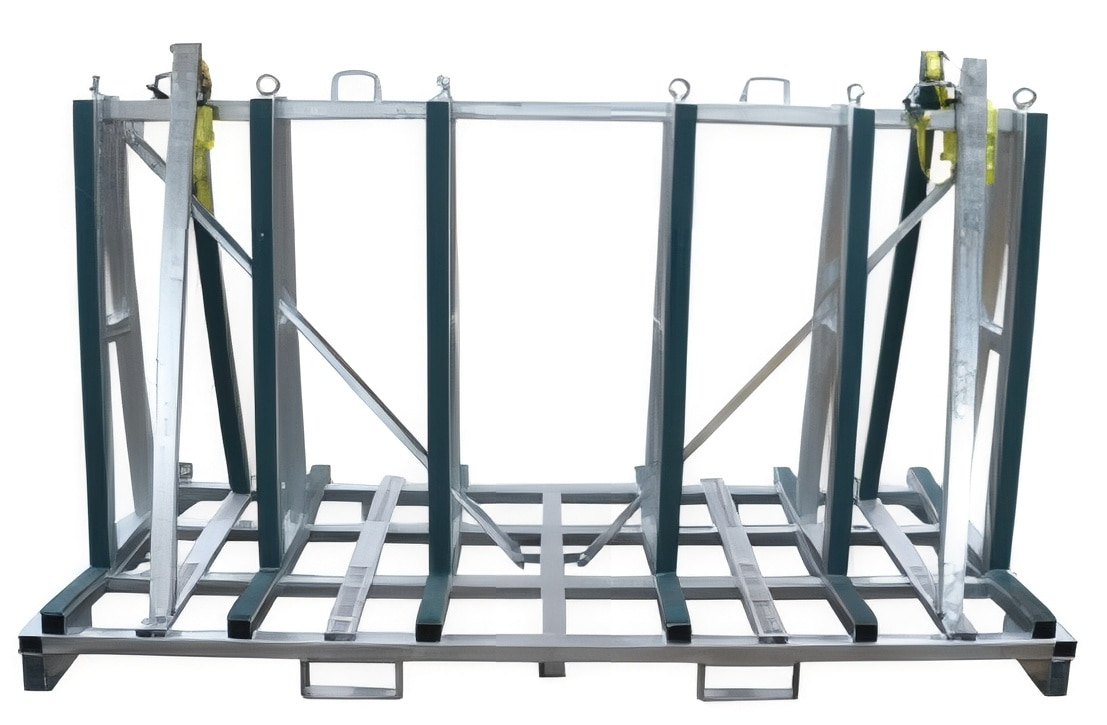

ASR4A-F A Frame Stone Slab Rack is specially designed for safe storage, display, and handling of large stone slabs, including marble, granite, quartz, and artificial stone panels. With a strong A-shaped structure, it provides stable support while maximizing storage space in stone yards and fabrication workshops.
Modelo de producto :
ASR4A-FProceso de dar un título :
CE, ISOPresupuesto :
2800*1100*2150mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year
ASR4A-F Heavy Duty A Frame Stone Slab Rack is a professional storage and handling solution developed for the stone industry. Unlike ordinary flat storage methods that require more floor space and increase the risk of slab damage, the A-frame structure allows stone slabs to be stored vertically with better stability and accessibility.

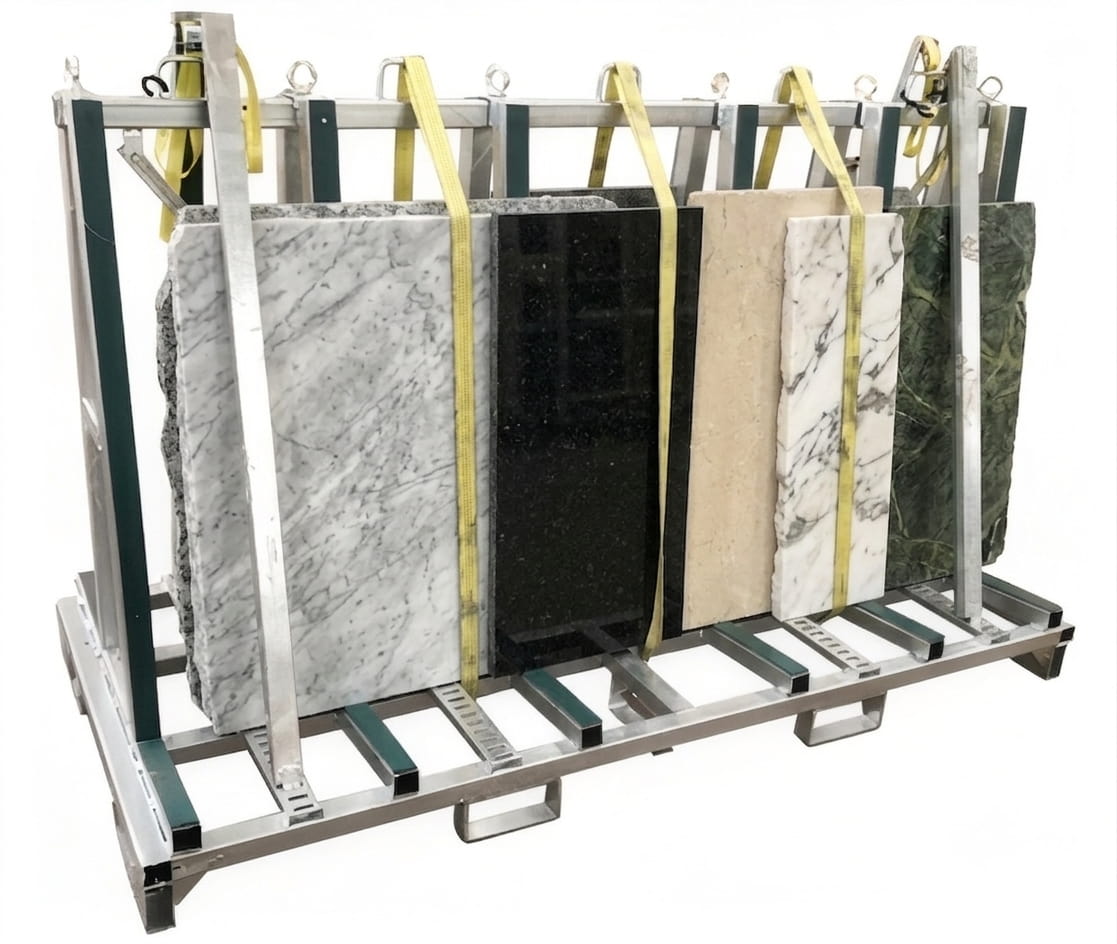

The rack is suitable for storing different types of stone materials, including marble slabs, granite slabs, quartz slabs, porcelain slabs, and other large-format panels. The inclined support design distributes the weight of the slabs evenly, helping reduce stress concentration and improving storage safety.
Core Features
1. A-Frame Structure: Stable Support For Large Stone Slabs
The A-shaped design provides balanced weight distribution and stable vertical support, allowing large marble, granite, and quartz slabs to be stored safely while reducing the risk of leaning or accidental falling.
2. Space-Saving Storage: Maximizes Warehouse Utilization
Compared with traditional flat stacking methods, vertical A-frame storage reduces occupied floor area and helps stone suppliers store more slabs within the same warehouse space.
3. Easy Slab Access: Improves Material Handling Efficiency
The open structure allows operators to quickly identify slab types, colors, and patterns, reducing unnecessary movement when selecting materials for cutting or fabrication.
4. Heavy-Duty Design: Supports Various Stone Materials
Built for industrial stone applications, the rack can be used for different slab materials such as granite, marble, quartz, and ceramic panels with different sizes and weights.
5. Organized Slab Management: Simplifies Inventory Control
The separated storage method helps classify stone slabs according to material type, customer order, or production schedule, making warehouse management more efficient.
6. Safe Loading And Unloading: Reduces Manual Handling Risks
The inclined supporting structure provides a more controlled loading angle, helping workers move stone slabs more safely during storage, inspection, and transportation preparation.
Technical Parameters
| Model | ASR4A | ASR4B | ASR4C | ASR4D | ASR4D | ASR4E | ASR4F |
| Dimension | 2800*1100*2150mm | 2800*1100*1650mm | 2200*1100*1650mm | 2200*1100*1350mm | 2200*1100*1350mm | 1500*1100*1650mm | 1500*1100*1350mm |
| Pack Size | 2800*1100*350mm | 2800*1100*350mm | 2200*1100*350mm | 2200*1100*350mm | 2200*1100*350mm | 1500*1100*300mm | 1500*1100*300mm |
| Slab Placed Width | 290mm Each Side | 315mm Each Side | 315mm Each Side | 340mm Each Side | 340mm Each Side | 315mm Each Side | 340mm Each Side |
| Slab Placed Height | 1950mm | 1450mm | 1450mm | 1150mm | 1150mm | 1450mm | 1150mm |
| Load Capacity | 3T | 3T | 3T | 3T | 3T | 2.7T | 2.7T |
| Net Weight | 225kg | 200kg | 190kg | 170kg | 170kg | 142kg | 130kg |
Applications
A Frame Stone Rack VS Traditional Flat Stacking Storage
| Item | A Frame Stone Slab Rack | Traditional Flat Stacking |
|---|---|---|
| Storage Method | Vertical inclined storage | Horizontal stacking |
| Space Usage | Uses warehouse height efficiently | Requires larger floor area |
| Slab Selection | Easy to identify and remove individual slabs | Difficult to access middle slabs |
| Safety | Reduces pressure between slabs | Higher risk of scratches and damage |
| Management Efficiency | Better for large slab inventory | Suitable only for limited storage |
Expert Q&A
Q1: Why use an A-frame rack instead of stacking slabs on the floor?
A: Flat stacking requires more space and makes it difficult to access individual slabs. The A-frame design stores slabs vertically, improving accessibility and reducing handling time.
Q2: Is the rack suitable for stone slab warehouses?
A: Yes. It is designed specifically for stone storage environments, helping warehouses organize different slab colors, sizes, and materials efficiently.
Q3: Can this rack be used in stone processing factories?
A: Yes. Many stone factories use A-frame racks near cutting, polishing, and CNC processing areas to improve workflow efficiency and reduce unnecessary slab movement.
Q4: How does the rack improve stone safety?
A: The inclined support structure provides stable contact with slabs, reducing uneven pressure and helping prevent damage caused by improper storage methods.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
