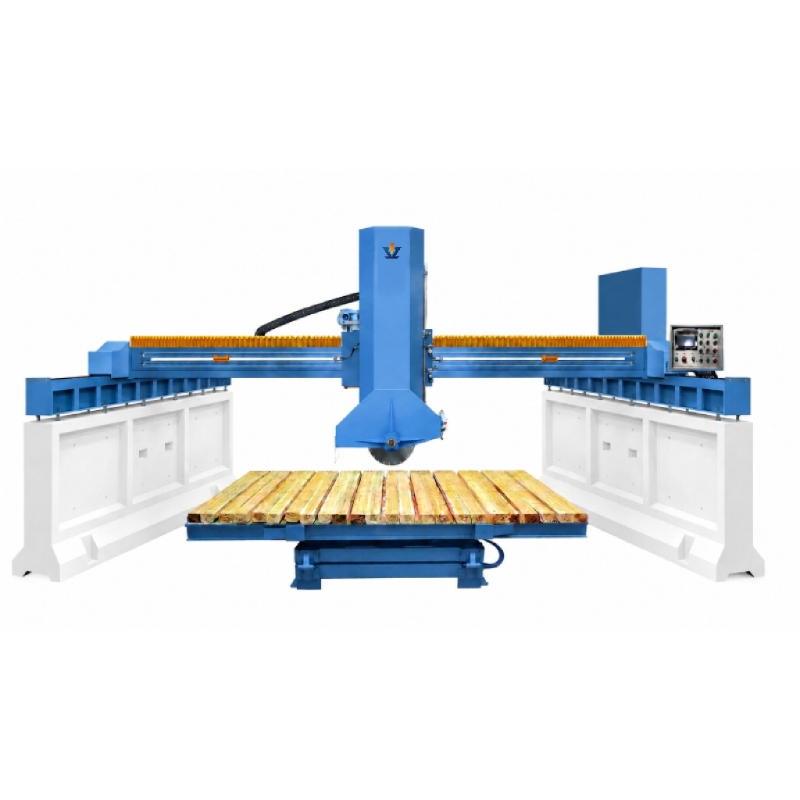

The Infrared Stone Bridge Cutting Machine is a professional CNC stone cutting solution designed for marble, granite, quartz, and other stone materials. Equipped with an infrared positioning system, high-power main motor, and flexible rotating table options, it delivers accurate straight cutting, angle cutting, and customized stone fabrication with high efficiency.
Modelo de producto :
JZ-600IProceso de dar un título :
CE, ISOPresupuesto :
6000x5000x2600mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year

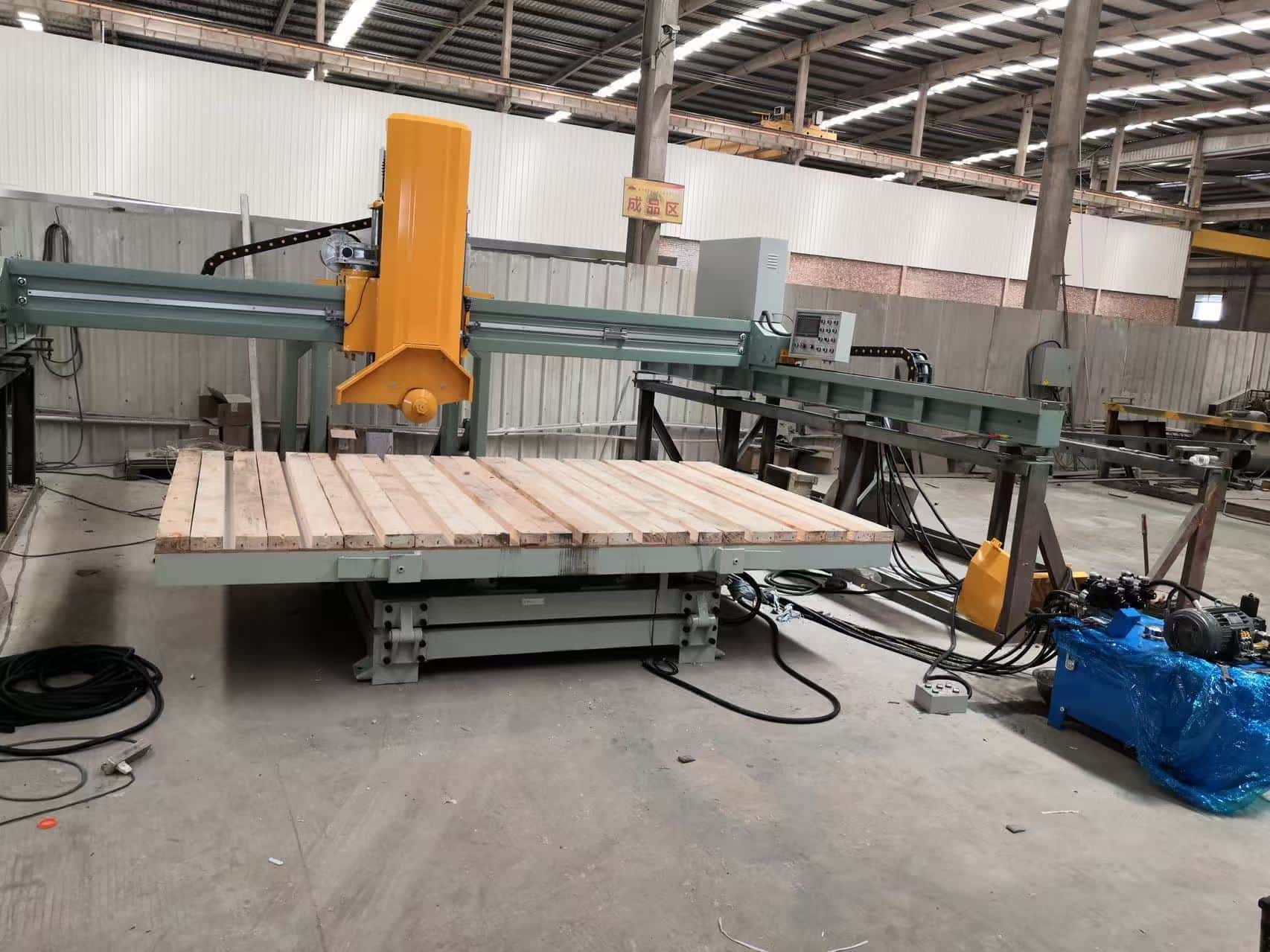

The Automatic Infrared Bridge Cutting Machine combines precision positioning, heavy-duty structure, and multi-angle processing capability to meet the requirements of modern stone fabrication workshops.

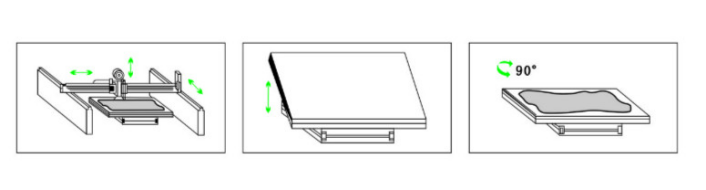

Different from conventional bridge cutting machines with fixed worktables, this model offers two table rotation configurations: 0-90° rotating table for standard angle processing and 360° optional rotating table for flexible multi-directional cutting. The 0-85° tilting table allows convenient slab loading and edge processing, while the infrared positioning system helps operators quickly locate cutting lines and reduce measurement errors.
Core Features
1. High-Precision Infrared Positioning: Equipped with an infrared positioning system, the machine helps operators quickly locate cutting lines and achieve accurate stone cutting with reduced measurement errors.
2. Powerful Stone Cutting Performance: With a 15kW main motor and 400-600mm diamond saw blade support, the bridge saw provides strong cutting capacity for granite, marble, quartz and other hard materials.
3. Stable Bridge Structure Design: The reinforced bridge structure minimizes vibration during operation, ensuring smooth cutting performance and long-term stability in professional stone factories.
4. Flexible Tilting & Rotating Table: The hydraulic tilting table supports 0°-85° movement, while the optional 360° rotating table enables multi-directional cutting for complex stone processing.
5. Large Format Stone Processing: With a maximum working size of 3200×2000×180mm, the machine is suitable for processing large stone slabs and oversized countertop materials.
6. CNC Intelligent Operation: The CNC control system simplifies machine operation and improves cutting consistency for both experienced operators and new users.
7. Efficient Material Utilization: Precise positioning and stable cutting reduce unnecessary material waste, helping stone fabricators improve production efficiency and profitability.
Technical Parameters
| Max.working dimensions(LxWxH) | 3200x2000x180mm | ||||||
| Max.diameter of blade | 400-600mm | ||||||
| Table dimensions(LxW) | 3200x2000mm | ||||||
| Table tilting degree | 0-85° | ||||||
| Table rotating degree | 0-90°；360°（optional） | ||||||
| Power of main motor | 15kw | ||||||
| (X/Y-axis) Motor power | 1.5kw | ||||||
| Hydraulic box power | 2.2kw | ||||||
| Table capacity | 500kg | ||||||
| Dimension (LxWxH) | 6000x5000x2600mm | ||||||
| Weight | 5000kg | ||||||
Applications
CNC Infrared Bridge Saw vs Traditional Manual Stone Cutting Machine
| Comparison | CNC Infrared Bridge Saw | Traditional Cutting Machine |
|---|---|---|
| Cutting Accuracy | Infrared positioning and CNC control improve cutting accuracy and repeatability. | Manual measurement may cause higher cutting errors during repeated processing. |
| Working Efficiency | Automatic movement reduces operation time and improves production efficiency. | Requires more manual adjustment and operation steps. |
| Large Slab Processing | Supports large stone slabs up to 3200×2000×180mm. | Usually limited by manual handling and smaller working capacity. |
| Production Stability | Rigid bridge structure ensures stable performance during continuous cutting. | Cutting quality depends more on operator experience. |
Expert Q&A
Q1: What materials can a CNC infrared bridge saw cut?
The CNC infrared bridge saw can cut granite, marble, quartz, ceramic slabs, limestone and other construction stone materials. The 15kW motor and 600mm blade capacity allow stable processing of various thicknesses.
Q2: What is the difference between a 90° rotating table and a 360° rotating table?
The 0°-90° rotating table is mainly designed for standard cutting tasks such as straight cuts and angle cuts. The optional 360° rotating table provides more flexibility for multi-directional cutting and complex stone fabrication projects.
Q3: Why choose a CNC bridge saw instead of a manual stone cutting machine?
Compared with manual cutting machines, CNC bridge saws provide higher cutting accuracy, better repeatability and improved production efficiency. They are especially suitable for professional stone factories handling large quantities of stone slabs.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
