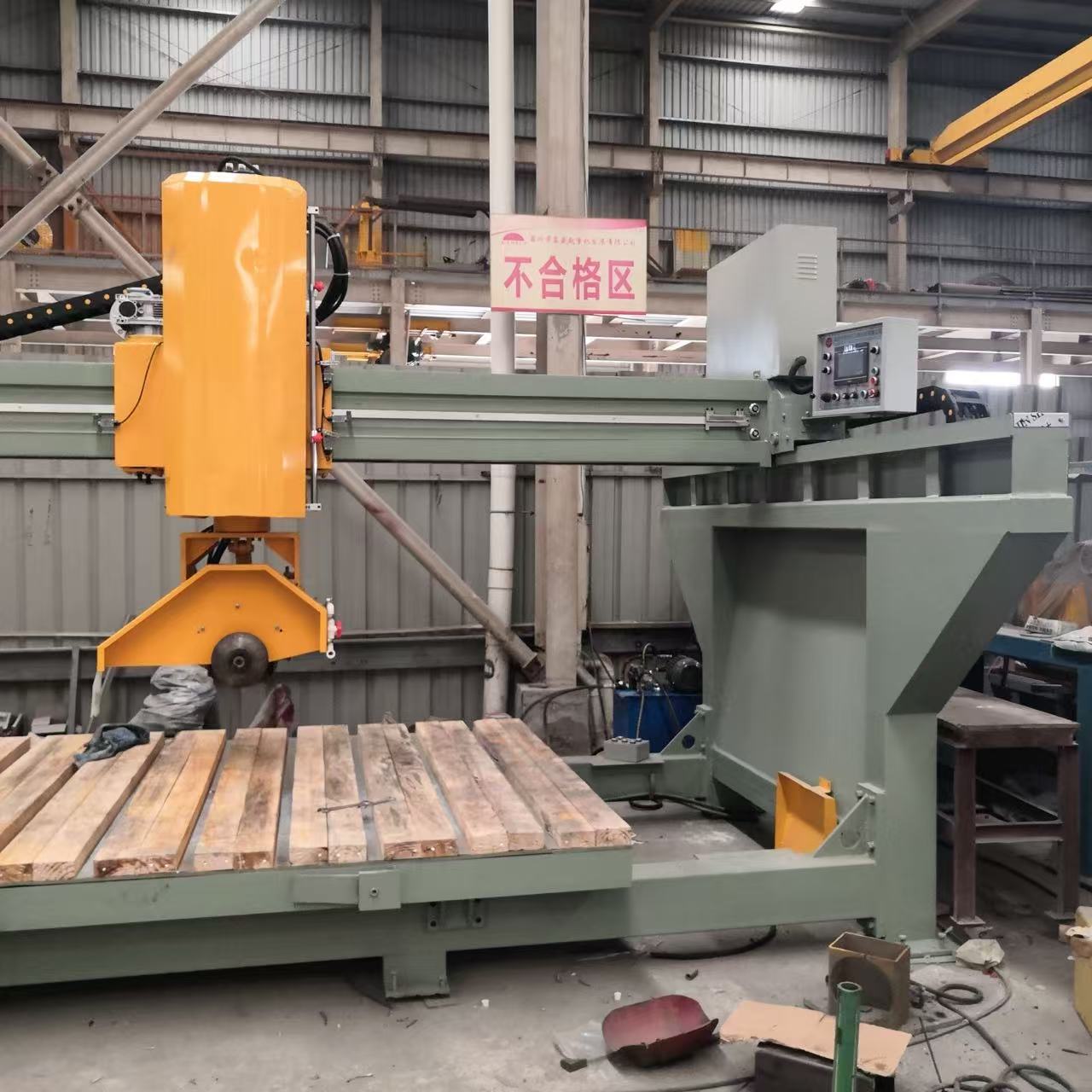

Our CNC Stone Bridge Saw Machine is designed for high-precision cutting of marble, granite, quartz, and other stone materials. Equipped with a rotating cutter head and adjustable bevel cutting function, it supports straight cutting, angle cutting, and 0-45° chamfering operations for professional stone fabrication.
Modelo de producto :
JZ-600SProceso de dar un título :
CE, ISOPresupuesto :
5300x3300x2600mmOrigen :
QuanzhouPuerto :
XiamenMuestras disponibles :
NoServicio posventa :
ProvidePeríodo de garantía :
1 Year

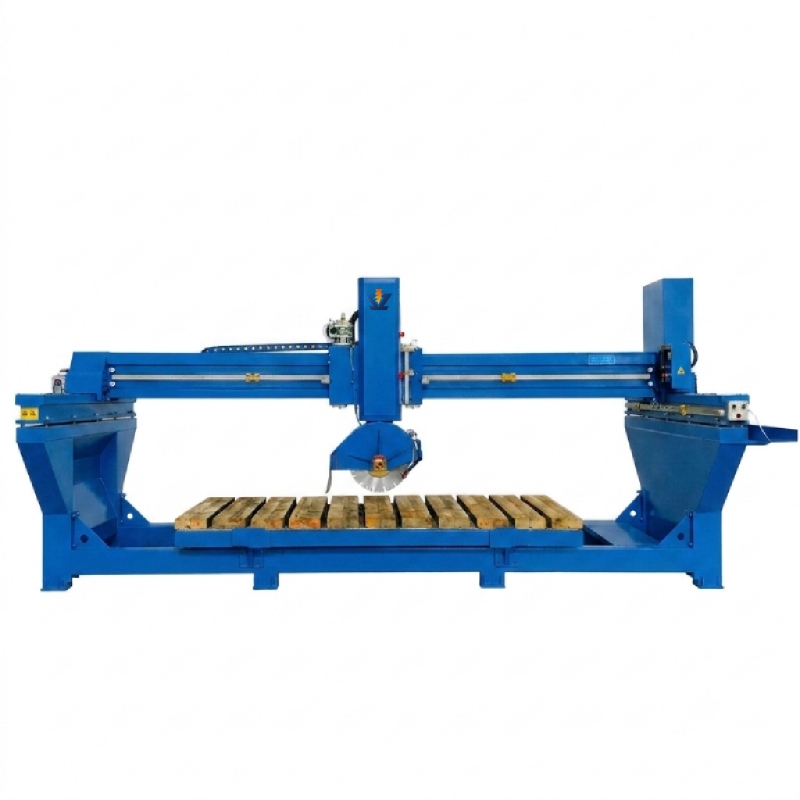

The Integrated Stone Bridge Saw Machine combines powerful cutting performance with flexible processing capability, making it an ideal solution for stone processing factories, countertop manufacturers, and architectural decoration companies. With a large working area of 3000×2000mm, a blade diameter range of 400-600mm, and an 18.5kW main motor, this stone cutting machine delivers stable performance for large-format slabs and customized stone projects.
Unlike traditional manual stone cutting equipment, this CNC Bridge Saw Machine provides accurate positioning, multi-angle cutting, and efficient production. The cutter head can rotate 0-90° and the bevel cutting angle can be manually or automatically adjusted from 0-45°, allowing operators to easily complete edge beveling, countertop fabrication, stair processing, and complex stone cutting tasks.
Core Features
1. Multi-Angle Cutting Capability: Flexible cutting performance with 0-90° cutter head rotation and 0-45° bevel adjustment, allowing one machine to complete straight cutting, diagonal cutting, and edge chamfering operations.
2. High Precision Cutting System: Equipped with a stable bridge structure and precision control system, achieving ±0.01mm cutting accuracy for consistent stone dimensions and reduced material waste.
3. Powerful Stone Processing Performance: Driven by an 18.5kW main motor and compatible with 400-600mm diamond blades, the machine provides strong cutting force for marble, granite, quartz, and other hard materials.
4. Large Format Processing Capacity: With a maximum working size of 3000×2000×150mm, this stone bridge saw is suitable for large slabs, countertops, wall panels, and customized stone projects.
5. Integrated Bridge Saw Design: The compact all-in-one structure simplifies installation and operation while saving workshop space compared with traditional separated stone cutting systems.
6. Efficient Water Cooling System: A 4L/min water supply system effectively reduces blade temperature, improves cutting stability, and extends diamond blade service life.
Technical Parameters
| Max.working dimensions(LxWxH) | 3000x2000x150mm | ||||||
| Max.diameter of blade | 400-600mm | ||||||
| Table dimensions(LxW) | 3000X2000mm | ||||||
| Table tilting degree | 0-85° | ||||||
| Cutter head rotating degree | 0-90° | ||||||
| Cutter head tilting degree | 0-45° (manual/automatic) | ||||||
| Power of main motor | 18.5kw | ||||||
| Water consumption | 4L/min | ||||||
| Precision | ±0.01mm | ||||||
| Dimension(LxWxH) | 5300x3300x2600mm | ||||||
| Weight | 5000kg | ||||||
| Delivering by ship | 1set 1x20’ container | ||||||

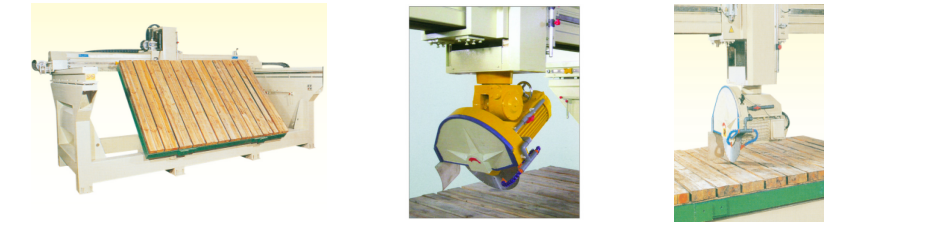

Applications
Why Choose This Bridge Saw Instead of Traditional Stone Cutting Machines?
| Comparison | Traditional Stone Cutting Machine | CNC Stone Bridge Saw Machine |
|---|---|---|
| Cutting Method | Mainly straight cutting | Straight cutting + angle cutting + bevel cutting |
| Bevel Processing | Requires additional equipment | Built-in 0-45° bevel adjustment |
| Accuracy | Depends heavily on operator experience | ±0.01mm precision control |
| Production Efficiency | More manual operations | Faster automated processing |
| Material Utilization | Higher risk of cutting errors | More accurate cutting reduces waste |
| Application Range | Limited stone processing tasks | Countertops, slabs, architecture, monuments |
Expert Q&A
Q1: Can this bridge saw cut stone at a 45-degree angle?
Yes. The cutter head supports 0-45° bevel cutting adjustment, allowing operators to process miter edges, countertop joints, and decorative stone edges without purchasing another beveling machine.
Q2: Is the machine suitable for small stone factories?
Yes. The integrated structure saves installation space while providing multifunctional cutting capability, making it suitable for small and medium-sized stone processing workshops.
Q3: What is the difference between a bridge saw and a CNC stone cutting center?
A bridge saw focuses mainly on slab cutting, while a CNC stone cutting center provides more advanced machining functions. This bridge saw offers a practical balance by adding rotating head control and bevel cutting capability, allowing factories to complete more processes with one machine.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
